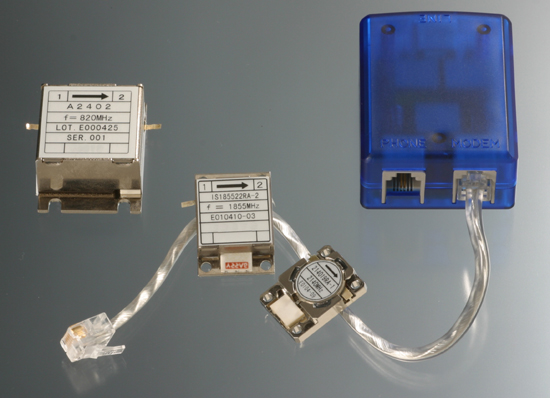

Products - High Power Isolator & ADSL Splitter   Download Acrobat Reader Isolator : Dimension & Specification Splitter : Dimension & Specification   High Power Isolator For LPA, HPA in IMT-2000 Thermal properties is not changed thru temperature variation Input terminal is adjustable to each application Keep the best isolation from the reverse power Band width : 100MHz Insertion loss : 0.2dB max Isolation : 21 dB min Handling power : 200W max. P-P 400W max Reflection power : 100W max Inter modulation value : 85dBm at 44.5dBm * 2tones Operating Temp. : 0-85 ℃ V.S.W.R. : 1.2 max (S11) (S22) ADSL Splitter ADSL Splitter model No. SP-01 was certified JATE (Japan Approvals Institute for Telecommunications Equipment) Install a surge absorber removing and protecting the noise from outside DC shock as thundering and electrical intervention Unique, miniature, light design to meet all ADSL modems such as ITU-T G.992.1 AnnexE Type-4 or ANSI TIE1.4 Annex C standard. POTS splitter separates data signals from voice signals on the telephone line. Applicable to 8Mbps (G.dmt) as well as 1.5 Mbps (G. lite) Compact and well matching cosmetic design and easy install.   Customers' Design Welcome
