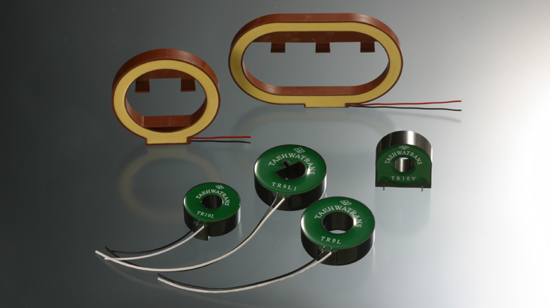

What Rogowski
Coil Is |
|
|
|
Air core di / dt sensors
measuring alternating currents in primary
induces a secondary voltage in the coil
that is proportional to the rate of
current change.
Rogowski coils have an associated phase
shift of 90 degrees at all input frequency.
This phase shift of Rogowski coils can
be compensated by minus 90 degree phase
shift using the integrator. |
|
|
|
|
Features |
|
|
|
|
|
Frequency range : 0.1 Hz to
1MHz |
|
|
Measurement : a few milliamps
to several million amps |
|
|
Excellent transients response |
|
|
Accurate phase response |
|
|
No saturation properties |
|
|
|
|
|
Application |
|
|
|
|
|
New Generation solid State Energy
Meters
(Analog ADE7759 will lead to the
solution incl. on-chip digital
integrator) |
|
|
Measurement of starting transients
or sudden short circuit in Electric
Motors or Generators |
|
|
Inverter Welding Machine |
|
|
Monitoring a Motor Control Center |
|
|
Air Circuit Breakers |
|
|
Gas Insulated Switch Gear |
|
|
Gas Circuit Breaker |
|
|
Robotic Welding Machine |
|
|
|
|
|
Customers'
Design Welcome |
|
